Plots fits files for a selected imager

This example shows how to download data for a selected imager, process the fits files, and plot an image.

Import Required Modules

from datetime import datetime, timedelta

import matplotlib.pyplot as plt
from sunpy.net import attrs as a

from PyThea.config import selected_imagers
from PyThea.utils import (download_fits, load_fits, make_figure,
                          single_imager_maps_process)

Select the imager and specify the time range of the query.

imager = 'LC2'
date_process = datetime.strptime('2021-10-28T16:30:00', '%Y-%m-%dT%H:%M:%S')
time_range = [-1, 1]
timerange = a.Time(date_process + timedelta(hours=time_range[0]),
                   date_process + timedelta(hours=time_range[1]))

Download the fits files from VSO using the download_fits utility.

files = download_fits(timerange, imager)
maps = load_fits(files)

Results from 1 Provider:

10 Results from the VSOClient:
Source: http://vso.stanford.edu/cgi-bin/search
Total estimated size: 21.084 Mbyte

       Start Time               End Time        Source ... Extent Type   Size
                                                       ...              Mibyte
----------------------- ----------------------- ------ ... ----------- -------
2021-10-28 15:36:06.000 2021-10-28 15:36:31.000   SOHO ...      CORONA 2.01074
2021-10-28 15:48:05.000 2021-10-28 15:48:31.000   SOHO ...      CORONA 2.01074
2021-10-28 16:00:05.000 2021-10-28 16:00:30.000   SOHO ...      CORONA 2.01074
2021-10-28 16:12:05.000 2021-10-28 16:12:30.000   SOHO ...      CORONA 2.01074
2021-10-28 16:24:06.000 2021-10-28 16:24:31.000   SOHO ...      CORONA 2.01074
2021-10-28 16:36:05.000 2021-10-28 16:36:30.000   SOHO ...      CORONA 2.01074
2021-10-28 16:48:05.000 2021-10-28 16:48:30.000   SOHO ...      CORONA 2.01074
2021-10-28 17:00:05.000 2021-10-28 17:00:30.000   SOHO ...      CORONA 2.01074
2021-10-28 17:12:06.000 2021-10-28 17:12:31.000   SOHO ...      CORONA 2.01074
2021-10-28 17:24:05.000 2021-10-28 17:24:30.000   SOHO ...      CORONA 2.01074



Files Downloaded:   0%|          | 0/10 [00:00<?, ?file/s]
Files Downloaded:  60%|██████    | 6/10 [00:00<00:00, 43.28file/s]
Files Downloaded: 100%|██████████| 10/10 [00:00<00:00, 67.42file/s]

Process the downloaded fits files using the single_imager_maps_process utility. We select to process the maps into running differences images.

processed_images = single_imager_maps_process(maps,
                                              **selected_imagers.imager_dict[imager]['process'],
                                              image_mode='Running Diff.',
                                              diff_num=1)

Preparing image sequence for C2. This could take a while...
INFO: Obtained JPL HORIZONS location for SOHO (spacecraft) (-21) [sunpy.coordinates.ephemeris]

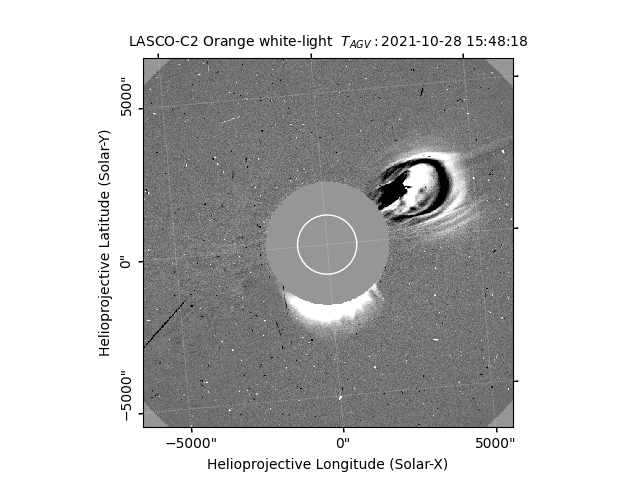

Plot the first image using the make_figure utility.

fig, ax = make_figure(processed_images[0], cmap='Greys_r', clim=[-20, 20], clip_model=True)

plt.show()

INFO: Missing metadata for solar radius: assuming the standard radius of the photosphere. [sunpy.map.mapbase]
INFO: Missing metadata for solar radius: assuming the standard radius of the photosphere. [sunpy.map.mapbase]
INFO: Missing metadata for solar radius: assuming the standard radius of the photosphere. [sunpy.map.mapbase]
